High Load Capacity Portable VLF Hipot
Đặc tính kỹ thuật: 0-44 kVAC peak, 0.1/0.05/0.02 Hz, load rated to 5.5µF.
Ứng dụng(Theo IEEE400.2)z; Thí nghiệm Acceptance cho cáp đến 25kV, Maintenance cho cáp đến 35kV
Features and Benefits

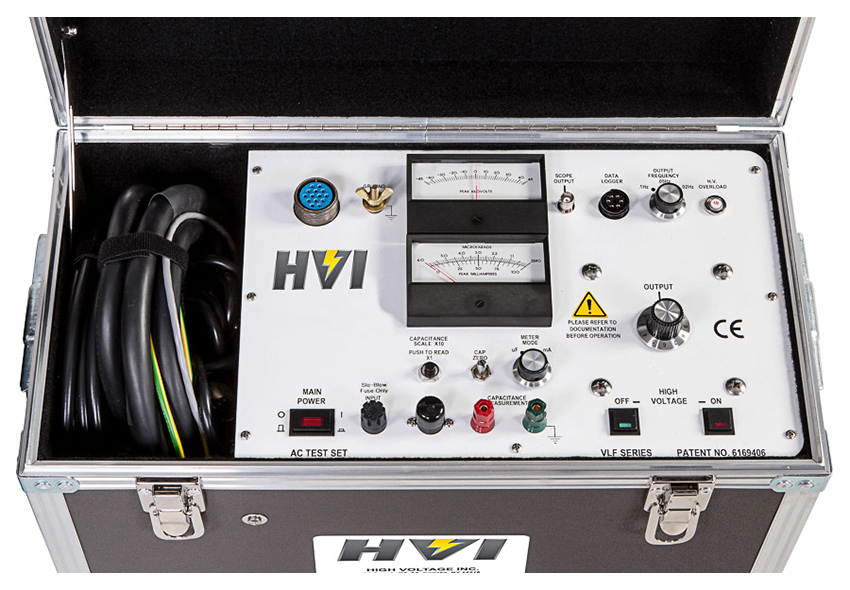

VLF-4022CM(F) has a 44 kVac peak output suitable for testing cables rated up to 25 kV. Its high load capacity can test over 10 miles (16 km) of cable, depending on type. This model includes a charging current and load capacitance meter, and a center zero peak kilovolt output meter. Two-piece construction makes it easy to transport and store.
| INPUT: |
120 V, 60 Hz, 5 A peak, 2.5 A average
(F) 230 V, 50/60 Hz, 3 A peak, 2 A average |
| OUTPUT: |
0 – 44 kV AC peak, 0.1/0.05/0.02 Hz sinusoidal |
| DUTY: |
Continuous |
| LOAD RATING: |
1.1 µF @ 0.1 Hz
2.2 µF @ 0.05 Hz
5.5 µF @ 0.02 Hz |
| VOLTMETER: |
Center zero -45 – 0 – +45 kV AC peak |
| CURRENT METER: |
0 – 100 mA peak |
| LOAD CAPACITANCE METER: |
0 – 6 µF |
| OUTPUT TERMINATION: |
Shielded RG/8U output cable – 20 ft. (6 m)
Interconnect cable – 10 ft. (3 m) |
| SIZE & WEIGHT:
(W X D X H) |
Controls:
22 x 11.25 x 15.25 in., 50 lb.
559 x 286 x 387 mm, 23 kg
HV Tank:
14.5 x 10.5 x 19 in., 72 lb.
368 w x 267 d x 483 mm, 33 kg |
VLF-4022CM(F)
