The
PTS-600(F) is designed as a

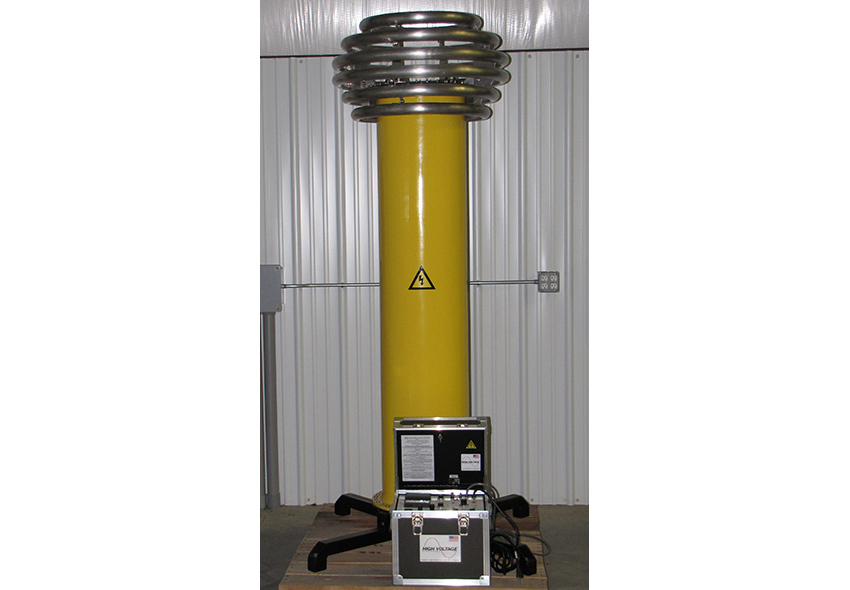

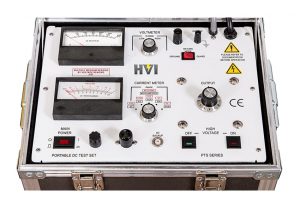

two-piece system with a small, portable controller and a single piece high voltage section housed in a fiberglass cylinder with a spinning output.
Like
all HVI products, the PTS-600(F) is designed to be rugged and reliable, equipped with all the features needed for
portable maintenance testing of new or service aged electrical apparatus and cable.
Features:
- Two range voltmeter and five range current meter
- MΩ readings at any output voltage (w/analog meters)
- Insulated return guard circuit to bypass stray leakage currents
- Rugged case (field) with cushion grip handles and storage for leads
- Internal discharge resistors to assist external bleed resistors
- External safety interlock provision
- Automatic transit protected meters rated 100 uA for durability
- Benchtop or field controller available, analog or digital metering
| INPUT |
PTS-600 – 120Vac, 50/60Hz, 30A
PTS-600 – 230Vac, 50/60Hz, 15A |
| OUTPUT |
0 – 600 kV DC @ 3 mA with field controller or @ 5 mA with benchtop controller |
| POLARITY/RIPPLE |
Negative output, positive ground
Ripple 2% – 3% depending on model |
| DUTY |
Continuous, capacitive charging |
| VOLTMETER |
3.5″, scaled 0-300/600 kV DC ±2% F.S. |
| CURRENT METER |
3.5″, scaled 0-1.0 μA DC, ±2% F.S. with multipliers of x 1, x 10, x 100, x 1 k, x 10 k
Guard/ground load return |
| MEGOHMMETER |
100 – 1 MΩ w/x.1, x1, x10, x100, x1k ranges, w/analog meters |
| SIZE & WEIGHT
(W – D – H) |
Controls: 21 x 15.5 x 15 in., 70 lb.
535 x 395 x 382 mm, 32 kg
Tank: 36 in. base, 15 in. dia. cylinder x 89 in. h, 580 lb.
914 mm base, 381 mm dia. cylinder, 1105 mm h, 263 kg |
PTS-600(F)
